Tattu New product - 2305 2450KV Brushless Quadcopter Motor

Tattu released a new FPV product - Tattu 2305 2450KV brushless Motor. It is a great and powerful motor that suitable for FPV racing drone. Each motor has been carefully balanced and tested in the factory. And Tattu motor will tested by many pilots. Meanwhile infuses the advantages of all the other motors in FPV quadcopter field.

The Tattu 2305 2450KV quadcopter motor RPM is 2450KV, 35A max burst current, 360W max continuous power and 85% max efficiency, it is very quick and has a fast response, and it is one of the best FPV racing motors around. Our motors are mainly suitable for 180-250 quadcopter frame, the compatible propeller sizes are 5040 / 5045 two-blade or three-blade propeller.

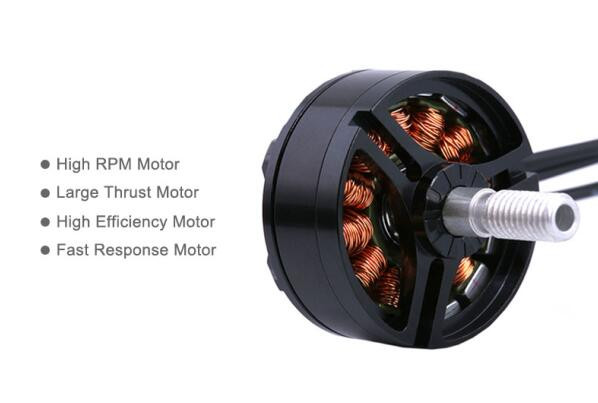

Tattu motor

Specifications:

RMP: 2450KV
Configuration: 12N14P
Max Efficiency: 85%
Voltage : 2-4S
Insulation Class: A
Insulation resistance: 100V 10M
Internal Resistance: 51m?
Continuous Current (A): 20A
Max Continuous Current (A): 60S 28A
Max Burst Current: <10S 35A
Continuous Power (W): 280W
Max Continuous Power (W): 60S 360W
Stator Diameter: 23mm
Stator Length: 5mm
Motor Diameter: 28.9mm X 17.5mm
Shaft Diameter: 4mm
Motor Wire Length: 95mm
Weight: 29.5g

More about details, check out: http://www.genstattu.com/ta-motor-2305-2450kv-4pcs.html
